Litcon Communication Co., Ltd.

Litcon offers various satellite antenna covering flyaway, maritime, SNG etc.,

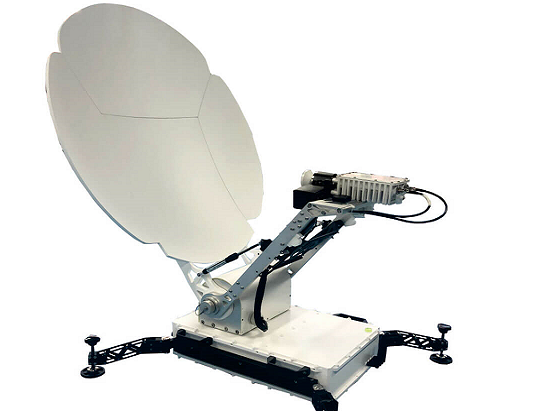

Flyaway Antenna

--0.6m/0.8 parabolic antenna

--Only 14Kgs

--Support Ka, Ku, X band

--IP65

--Compatible with IQ200, MDM2000, UHP1000 etc.,

--Satellite pointing less than 3 Min

--Gain: 41.1 @ 14.25 GHz (Tx) ; 40 @ 12.5 GHz (Rx)

--Typical System G/T @20deg: 17.4 dB/K min.

--EIRP Capability: 52dBW min (16W)

--Operational temperature: -20°C to 55°C

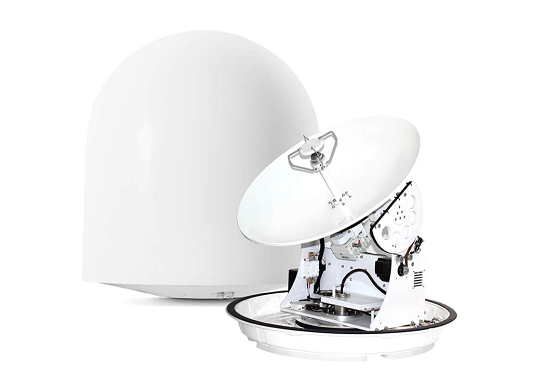

Maritime Antenna

--0.6/0.8/1.0/1.2m dish

--Frequency: TX : 13.75~14.5 GHz, RX : 10.7~12.75 GHz

--IP65

--Compatible with IQ200, MDM2000, UHP1000 etc.,

--BUC: 8w

--Gain: TX : 42.87 dBi @ 14.25 GHz RX : 40.95 dBi @ 11.75 GHz

--Typical System G/T @30deg: 20.79 dB/K min.

--Operating platform: 3-Axis

--Operational temperature: -20°C to 55°C

--Tracing speed: more than 90°/sec

--Certificate: RoHS

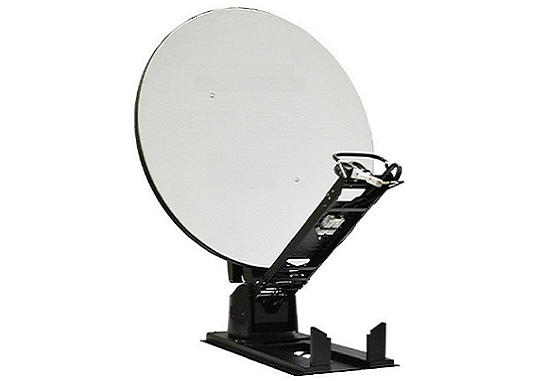

SNG Antenna

--0.6m/0.8 parabolic antenna

--Support Ka, Ku, X band

--IP65

--Compatible with IQ200, MDM2000, UHP1000 etc.,

--Satellite pointing less than 3 Min

--Gain: 41.1 @ 14.25 GHz (Tx) ; 40 @ 12.5 GHz (Rx)

--Typical System G/T: 20.0 dB/˚ K (100˚ LNB)

--EIRP Capability: 58.2dBW (20W)

--Operational temperature: -20°C to 55°C

High quality, excellent service & professinal solutions
